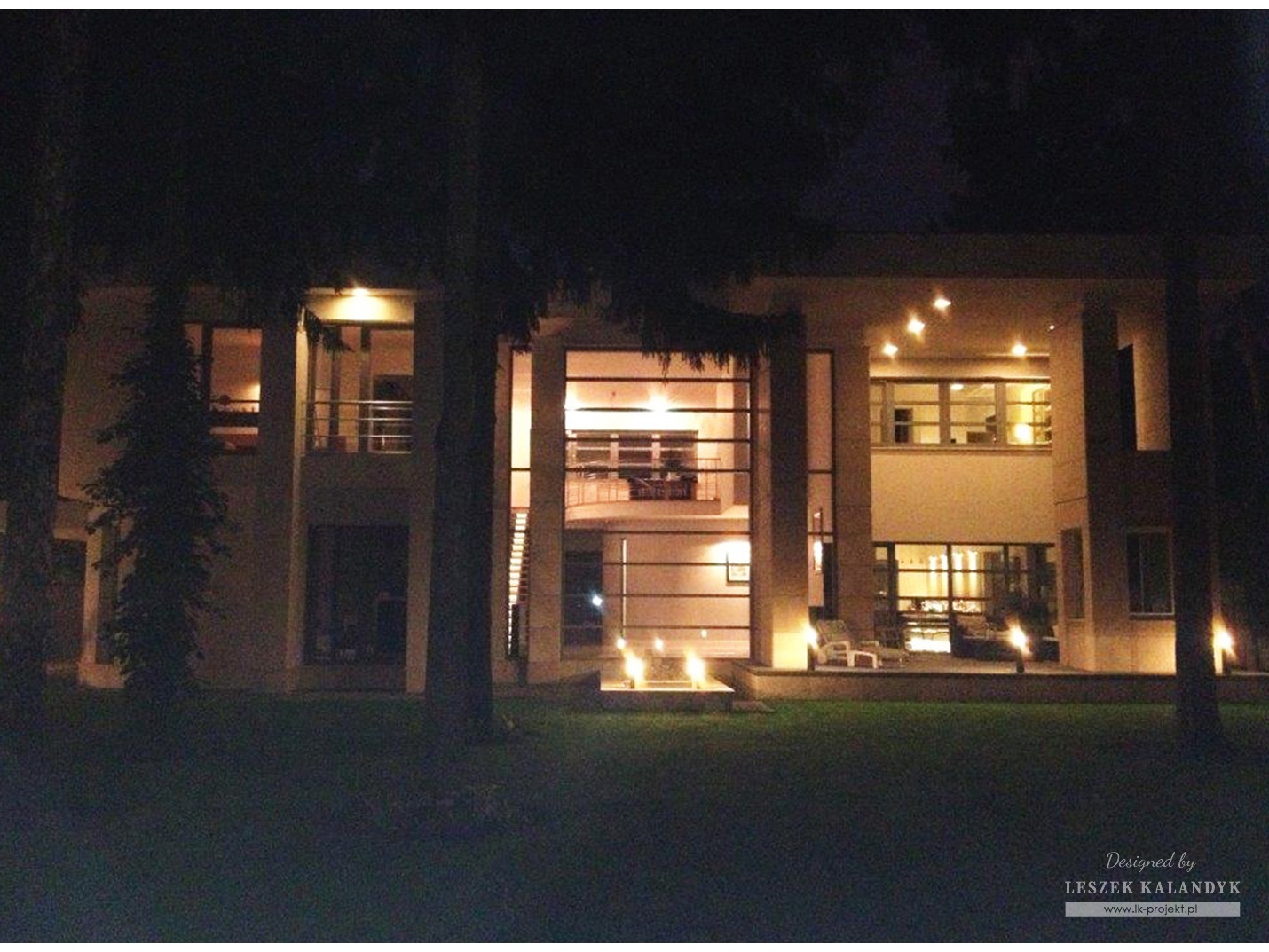

Two storey house in modern style with usable area 357 m2. House with a large garage. Minimum size of a plot needed for building a house is 29,05x26,15 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 357 m² |
| 2. Area garage | 41,75 m² |
| 3. Total surface | 614,55 m² |
| 4. Building area | 323,67 m² |
| 5. Net volume | 1209 m³ |
| 6. Gross volume | 2201 m³ |
| 7. Energy for heating | 28,9 kWh/m²*year |
| 8. Building height | 9,48 m |
| 9. Attic wall height | 0,19 m |
| 10. Roof angle | 18 ° |
| 11. Roof area | 200 m² |
| 12. Сeiling height | 3,15/2,90/3,65 m |
| 13. Minimum plot size | 29,05 x 26,15 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Exterior walls | made of Porotherm 30 P+W ceramic hollow bricks with a thickness of 30 cm by Winerberger, insulated with 20 cm thick styrofoam by Termo Organika and reinforced concrete blocks with a thickness of 25 cm insulated with 20 cm thick Rockton mineral wool by Rockwool and 25 cm thick Styrofoam by Termo Organika |
| 3. Interior walls | made of Porotherm 25 P+W and 11.5 P+W ceramic hollow bricks with thickness of 25, 11.5 by Wienerberger firms |
| 4. Ceiling | made of reinforced concrete |
| 5. Roof construction | wooden, insulated with mineral wool made by Rockwool company with thickness of 30 cm and reinforced concrete ceiling, insulated with dropped plates made of polyurethane foam PIR with thickness of min 20 cm made by Bauder company |
| 6. Roofing | titanium-zinc sheet metal and foil roofing according to the solutions of the Bauder firm |
| 7. Facade | finished with silicone plaster, lining with lime plates |
| 8. Windows and doors | aluminum ones by Sch?cko firm |
| 9. Type of heating | gas boiler, floor heating supported by traditional radiators |
| 10. Ventilation | gravitational |
Ground floor
| Usable area | 169,52 m2 |
| 1. Lobby | 5,67 m2 |
| 2. Wardrobe | 13,9 m2 |
| 3. Kitchen | 24,48 m2 |
| 4. Canteen | 25,03 m2 |
| 5. Pantry | 4,34 m2 |
| 6. Restroom | 2,49 m2 |
| 7. Living room | 52,43 m2 |
| 8. Office | 23,46 m2 |
| 9. Server room | 6,83 m2 |
| 10. Boiler room | 10,89 m2 |
| 11. Garage | 41,75 m2 |
Floor
| Usable area | 187,48 m2 |
| 1. Hall | 31,74 m2 |
| 2. Bathroom | 17,46 m2 |
| 3. Bedroom | 19,55 m2 |
| 4. Living room | 25,3 m2 |
| 5. Wardrobe | 16,38 m2 |
| 6. Bedroom 2 | 28,9 m2 |
| 7. Bathroom 2 | 16,67 m2 |
| 8. Bedroom 3 | 16,39 m2 |
| 9. Laundry room | 15,09 m2 |
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
