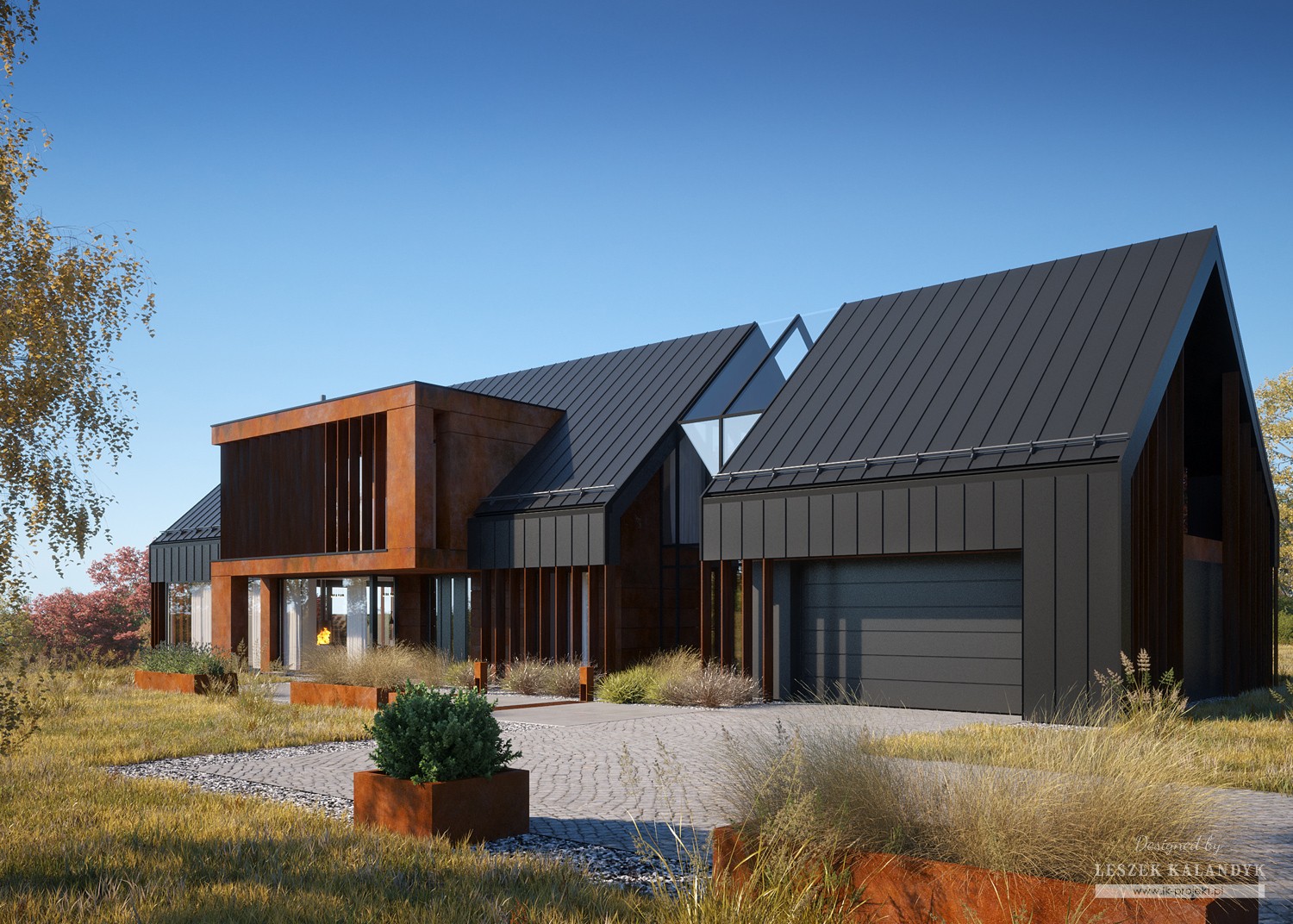

House with attic in modern style with usable area 317,96 m2. House with a large garage. Minimum size of a plot needed for building a house is 37x19,5 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 317,96 m² |
| 2. Area garage | 41,46 m² |
| 3. Total surface | 485 m² |
| 4. Building area | 298,3 m² |
| 5. Net volume | 1584,14 m³ |
| 6. Gross volume | 1639,95 m³ |
| 7. Building height | 9 m |
| 8. Attic wall height | 1,28 m |
| 9. Roof angle | 43 ° |
| 10. Сeiling height | 2,86 m; 3,30 m |
| 11. Minimum plot size | 37 x 19,5 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, thermo organika's Gold facade styrofoam insulation with a thickness of 20 cm |
| 4. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 5. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with rockwool with a thickness of 30 cm by Isover firm |
| 8. Roofing | sheet metal on upright seam |
| 9. Facade | Corten, silicone plaster color anthracite |
| 10. Windows and doors | aluminum |
| 11. Type of heating | gas, floor |
| 12. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 181,64 m2 |
| 1. Lobby | 11,91 m2 |
| 2. Corridor | 17,15 m2 |
| 3. Canteen | 19,75 m2 |
| 4. Living room | 54,13 m2 |
| 5. Kitchen | 20,98 m2 |
| 6. Pantry | 5,57 m2 |
| 7. Bathroom | 6 m2 |
| 8. Laundry room with boiler | 10,97 m2 |
| 9. Guest room | 10,68 m2 |
| 10. Greenhouse | 24,5 m2 |
| 11. Garage | 41,46 m2 |
Attic
| Usable area | 136,32 (143,96) m2 |
| 1. Corridor | 25,92 (25,92) m2 |
| 2. Bedroom | 19,69 (19,69) m2 |
| 3. Bathroom | 12,94 (12,94) m2 |
| 4. Room | 12,48 (14,55) m2 |
| 5. Room 2 | 12,30 (14,37) m2 |
| 6. Wardrobe | 25,91 (25,91) m2 |
| 7. Workshop | 27,08 (30,88) m2 |
1-530x300.jpg)
2-530x300.jpg)
3-530x300.jpg)
4-530x300.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
