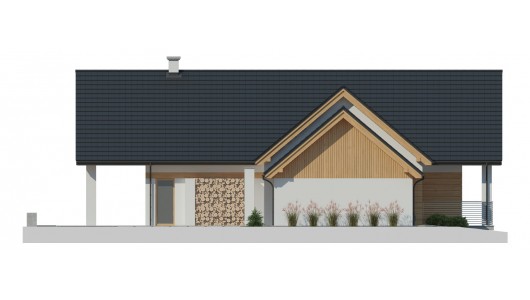

See Mirror image
Two storey house in traditional style with usable area 162,62 m2. House with car roof. Minimum size of a plot needed for building a house is 26,5x28 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 162,62 m² |
| 2. Additional area | 11,76 m² |
| 3. Total surface | 466,25 m² |
| 4. Building area | 181,6 m² |
| 5. Net volume | 767,87 m³ |
| 6. Gross volume | 1026,22 m³ |
| 7. Building height | 8,3 m |
| 8. Attic wall height | 1,4 m |
| 9. Roof angle | 40 ° |
| 10. Сeiling height | 2,7 m |
| 11. Minimum plot size | 26,5 x 28 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Exterior walls | Porotherm ceramic hollow brick with a thickness of 44 cm by Wienerberger, 6 cm thick styrofoam insulation |
| 3. Interior walls | clinker brick |
| 4. Interior walls | clinker brick |
| 5. Partition walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 11.5cm |
| 6. Roof construction | wooden , rafter-collar, insulated with mineral wool with a thickness of 40cm by Isover firm |
| 7. Roofing | anthracite flat roof tile |
| 8. Facade | wood, white plaster, granite |
| 9. Windows and doors | wooden |
| 10. Type of heating | heat pump |
| 11. Ventilation | gravitational, mechanical |
Ground floor
| Usable area | 112,93 m2 |
| 1. Entrance hall with cloakroom | 8,39 m2 |
| 2. Boiler room | 6,15 m2 |
| 3. Cabinet + bedroom | 21,75 m2 |
| 4. Pantry | 3,42 m2 |
| 5. Kitchen | 11,75 m2 |
| 6. Living room with dining area | 48,0 m2 |
| 7. Bathroom | 4,0 m2 |
| 8. Corridor | 9,47 m2 |
| 9. Storeroom | 5,88 m2 |
| 10. Storeroom 2 | 5,88 m2 |
Floor
| Usable area | 49,69 m2 |
| 1. Corridor | (6,05) 6,05 m2 |
| 2. Bedroom | (24,09) 13,39 m2 |
| 3. Room | (21,90) 16,39 m2 |
| 4. Bathroom | (7,34) 6,40 m2 |
| 5. Wardrobe | (7,52) 7,52 m2 |
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
